Combination Pellet and Plate Heater - The Deuce Self-Leveler

Specifications

  • Stainless steel is nickel-bearing, 200 series minimum. This material is NSF recognized for corrosion resistance.
  • The DALPH1022 has two heated compartments, one for plates and one for pellets, which are independently controlled and have an automatic hi-temp shut-off.
  • Accommodates dishes and pellets ranging from 7" to 10 1/4".
  • Electrical: 208/220 VAC, 60 Hz, single phase.
    Eight foot grounded 20 amp power cord supplied.
  • Construction: The outer unit is constructed of 18 gauge stainless steel. Inner walls constructed of .063 high strength aluminum. All sides and lids of unit are insulated with fiberglass insulation.
  • Lids: Unique hat-channel design requires no gaskets.
  • Heating System: Thermostatically controlled-forced air heating system with 3200 watt element.
  • Self-Leveling Dispenser: Individual, removable, self-adjusting and all stainless steel construction. Self-lubricating bearings ride over vertical guide rods. Available stacking height is 27 1/4".
  • Casters: Unit is mounted on four 5" diameter swivel casters with non-marking cushion tread, two with swivel-lock and wheel with brakes.

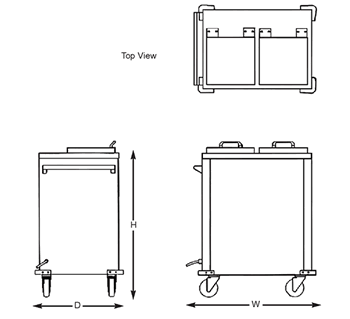

Model Overall Size Casters Shipping Weight Case Cube Electrical Specifications
W D H Type Dia. lbs. Cu. ft. Watt Amp Volt
DALPH1022 36" 24" 42 3/4" 4 swivel,
2 w/brake
5" 285 32.7 3200 17.2 208/220
60 Hz
