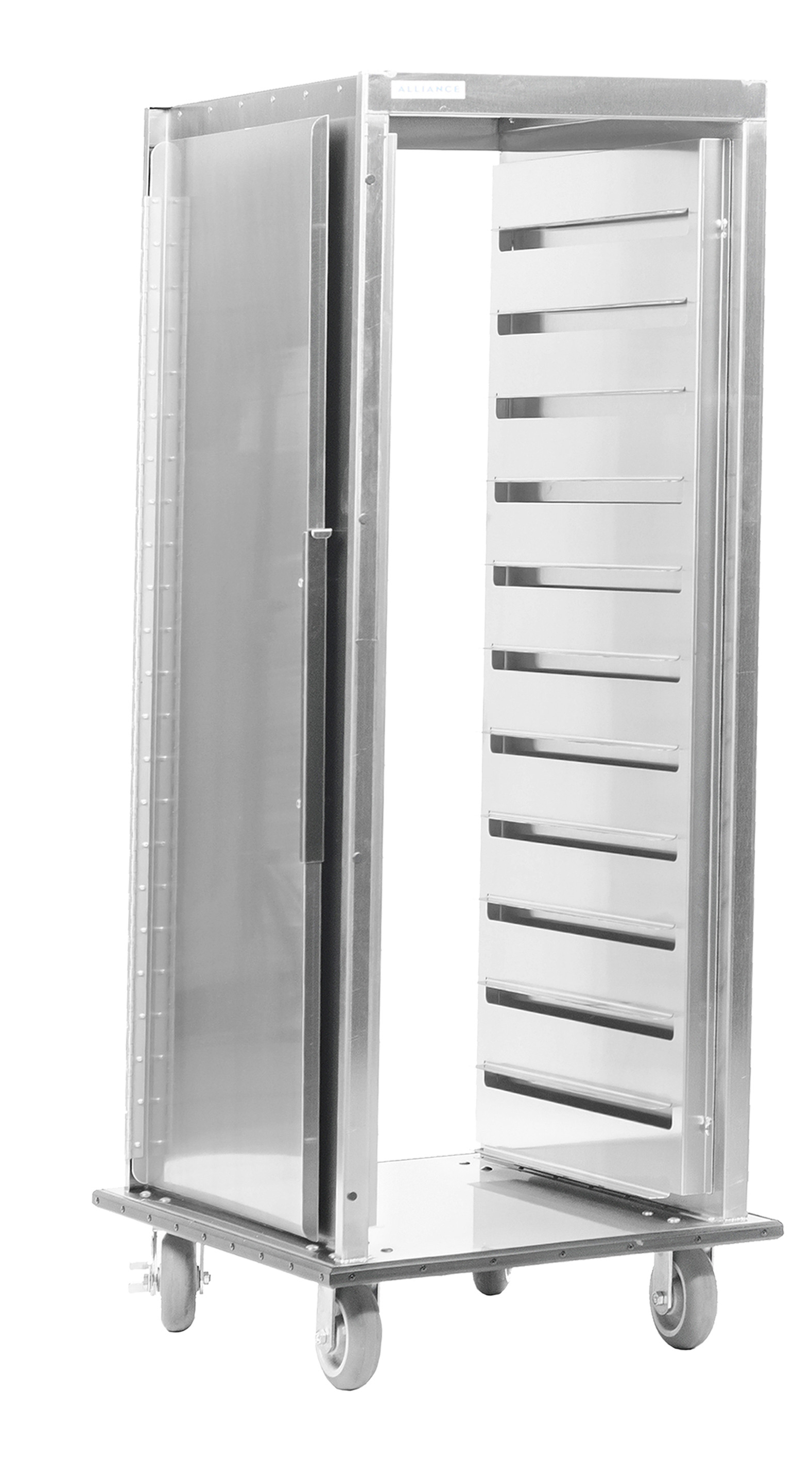

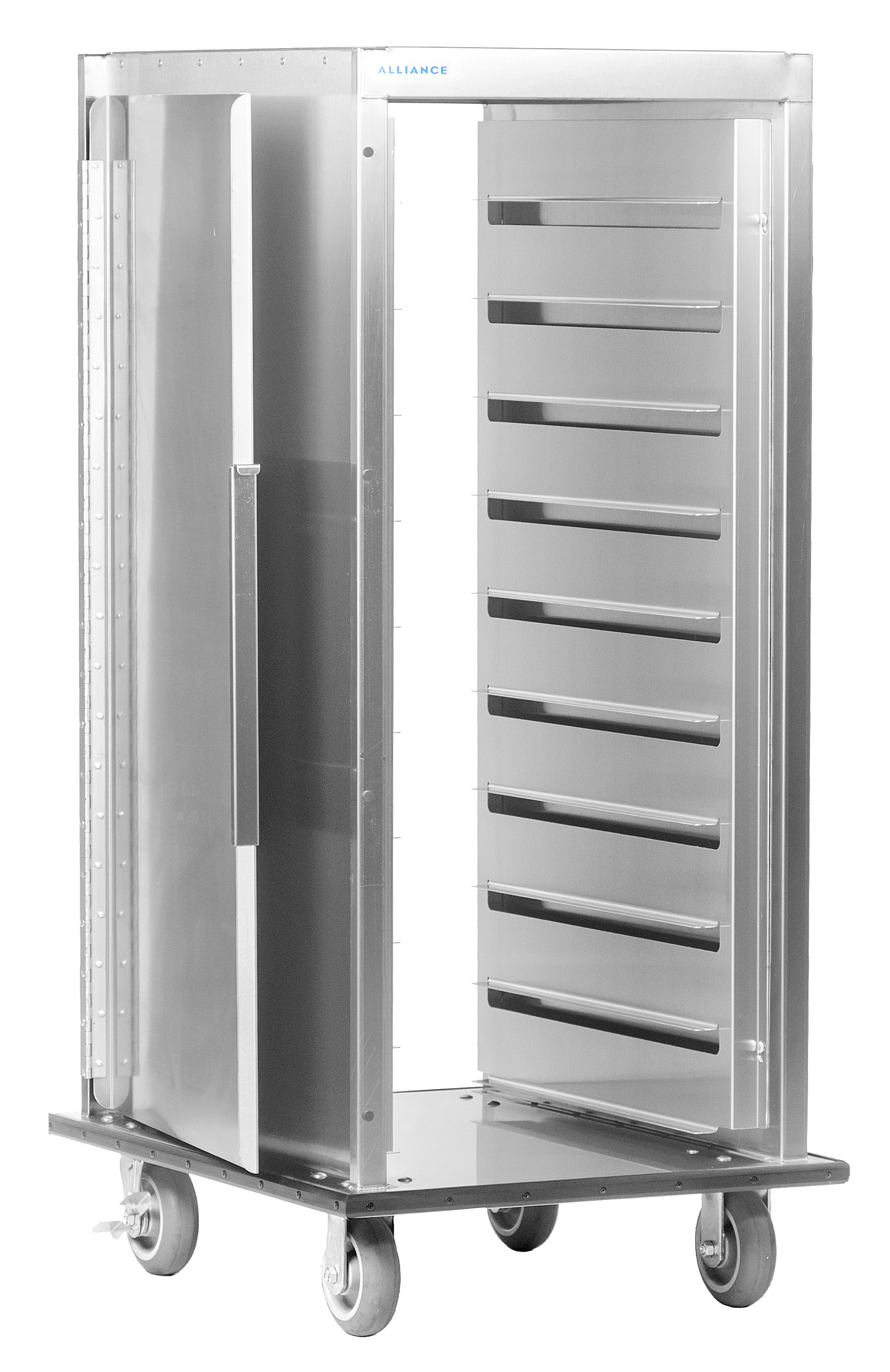

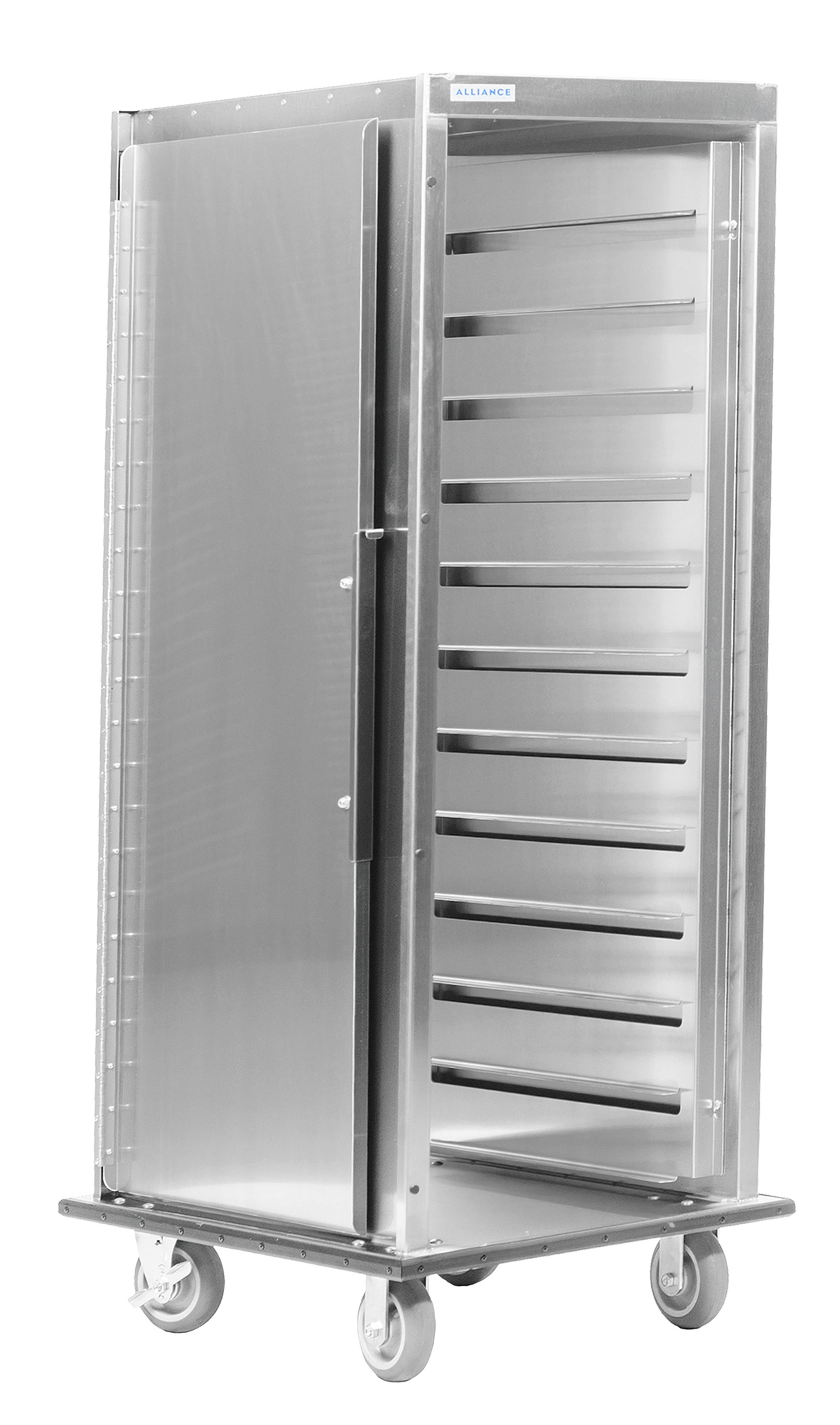

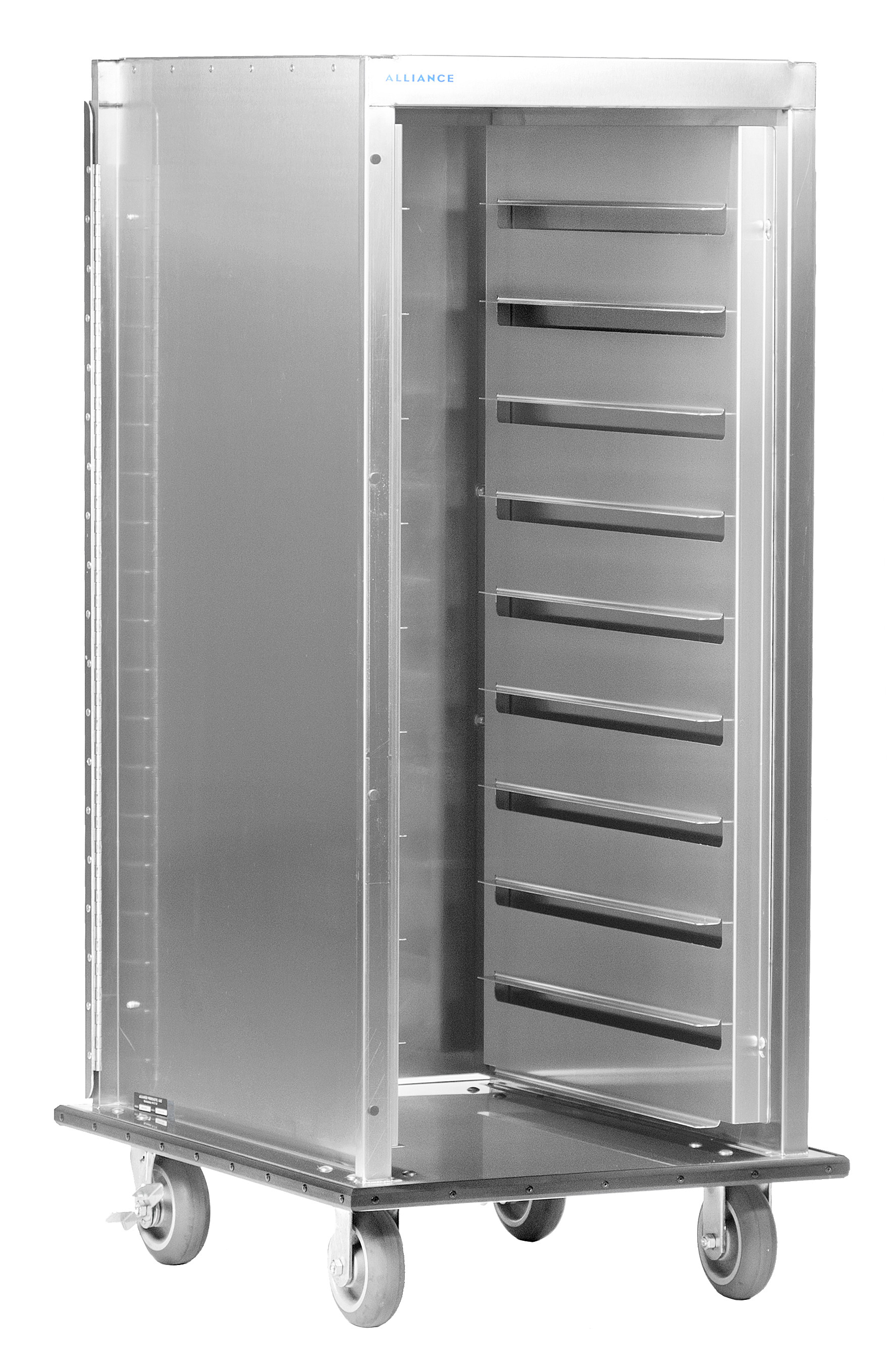

Economy Pass Thru Tray Cart

Specifications

  • Stainless steel is nickel-bearing, 200 series minimum. This material is NSF recognized for corrosion resistance.
  • Body is made of 18 gauge stainless steel. Top is made of 16 gauge stainless steel.
  • Single-panel doors designed with full length stainless steel hinge and heavy duty stainless steel gravity latch.
  • Both doors open a full 270 degrees and lay neatly against side of cart. Doors are made of .090 aluminum.
  • Contour .063 aluminum seamless tray slides are easily removable for better cleaning. Trays are side-loaded two trays per ledge.
  • Base is made from 14 gauge stainless steel.
  • Vertical cart body flanges serve as push handles on both ends of cart.
  • Cart has 6" diameter cushion casters with zerk fittings (two swivel with brakes and two rigid).
  • Full perimeter bumper is attached to cart base assembly.
  • Tray ledges are 1 3/16" wide.
  • Ledge spacing is 5"
  • Please contact our facility at 615-895-5333 with inquiries for custom tray sizes, capacities, and ledge spacing
  • Cart has no floor drain and is non-insulated

Dimensions of Previous Models

Model Overall Size Tray Size Casters Construction Combination Capacity Shipping
Weight
Height Width Depth Type Dia. Trays lbs.
HM1820PT 61" 28 1/2" 35 1/2" 14"x18" 2 fixed
2 swivel w/brake
6" Stainless Steel & Aluminum 20 174
HM2020PT 61" 28 1/2" 35 1/2" 15"x20" 2 fixed
2 swivel w/brake
6" Stainless Steel & Aluminum 20 174
HM1824PT 71" 28 1/2" 35 1/2" 14"x18" 2 fixed
2 swivel w/brake
6" Stainless Steel & Aluminum 24 196
HM2024PT 71" 28 1/2" 35 1/2" 15"x20" 2 fixed
2 swivel w/brake
6" Stainless Steel & Aluminum 24 196
