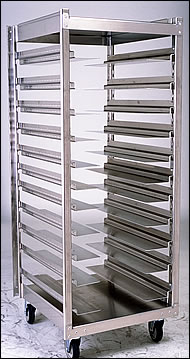

HD Universal Angle Rack

Specifications

  • Stainless steel is nickel-bearing, 200 series minimum. This material is NSF recognized for corrosion resistance.
  • Standard uprights formed of 16 gauge stainless steel for strength and durability.
  • Universal Angle Racks are equipped with 6 1/4" wide by 2 1/2" .090 aluminum ledges with a shoulder rivet in each end. Teardrop slots are incorporated into rack uprights to accept shoulder rivets in ledges. Teardrop slots are spaced 1 1/2" o.c.; ledges are furnished on 4 1/2" centers.
  • Solid seamless aluminum top and bottom are hemfolded to fit over rack sides and are attached to uprights with 1/4" rivets.
  • Racks are mounted on 5" diameter heavy duty swivel plate casters with polyurethane tread, mounted on 12 gauge galvanized reinforcing channels.

Dimensions

Model Tray Capacity Ledge Spacing Overall Size Casters Shipping Weight
W D H Type Dia. lbs.
A6913U 13 & 26 18"x26", 12"x20"
& others
4 1/2" 26" 27" 69" 4 swivel,
2 w/brake
5" 120
A6311U 11 & 22 18"x26", 12"x20"
& others
4 1/2" 26" 27" 63 1/2" 4 swivel,
2 w/brake
5" 105
