Specifications
- Stainless steel is nickel-bearing, 200 series minimum. This material is NSF recognized for corrosion resistance.
- Body available in .063 aluminum or 18 gauge stainless steel.

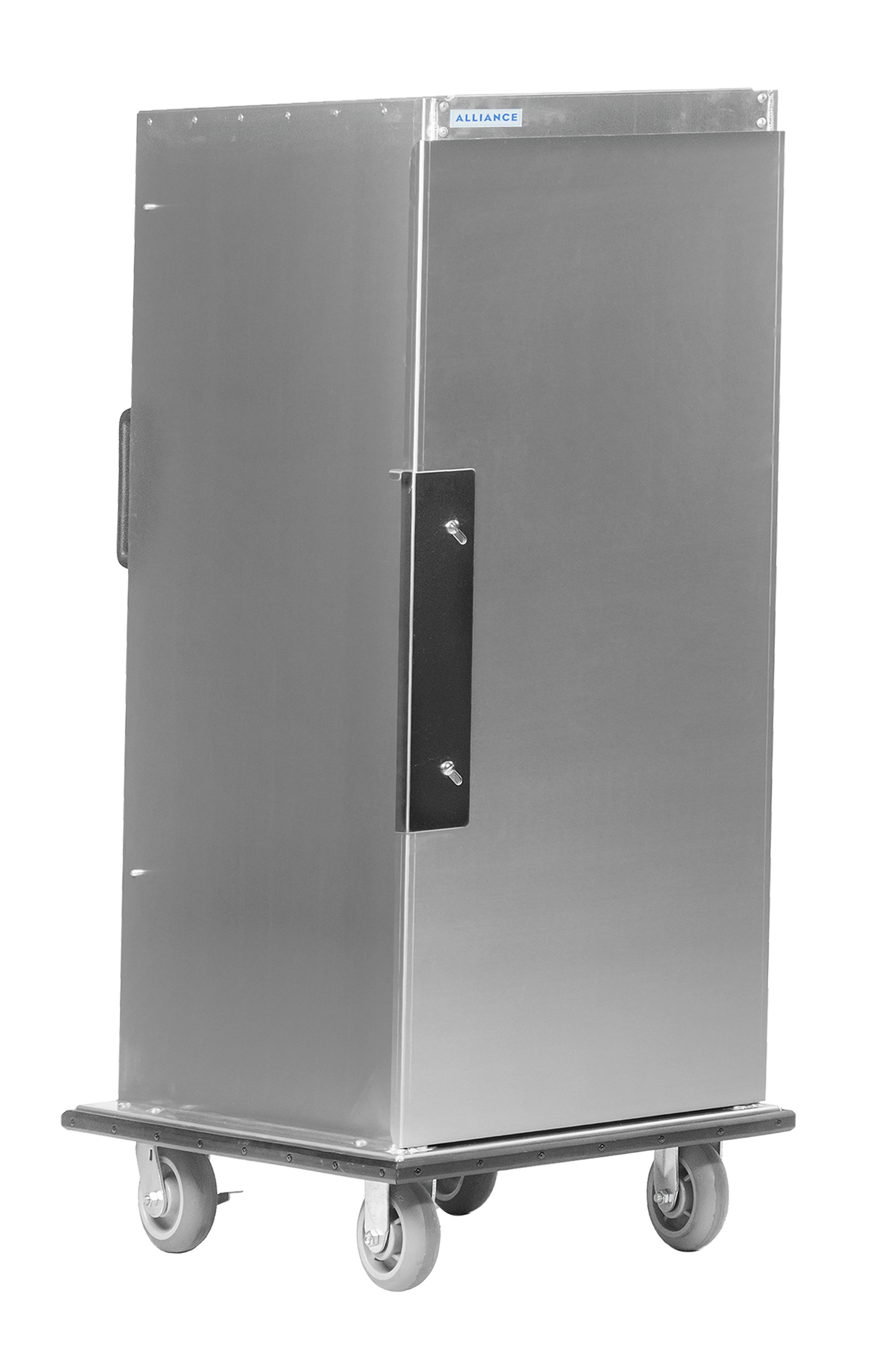

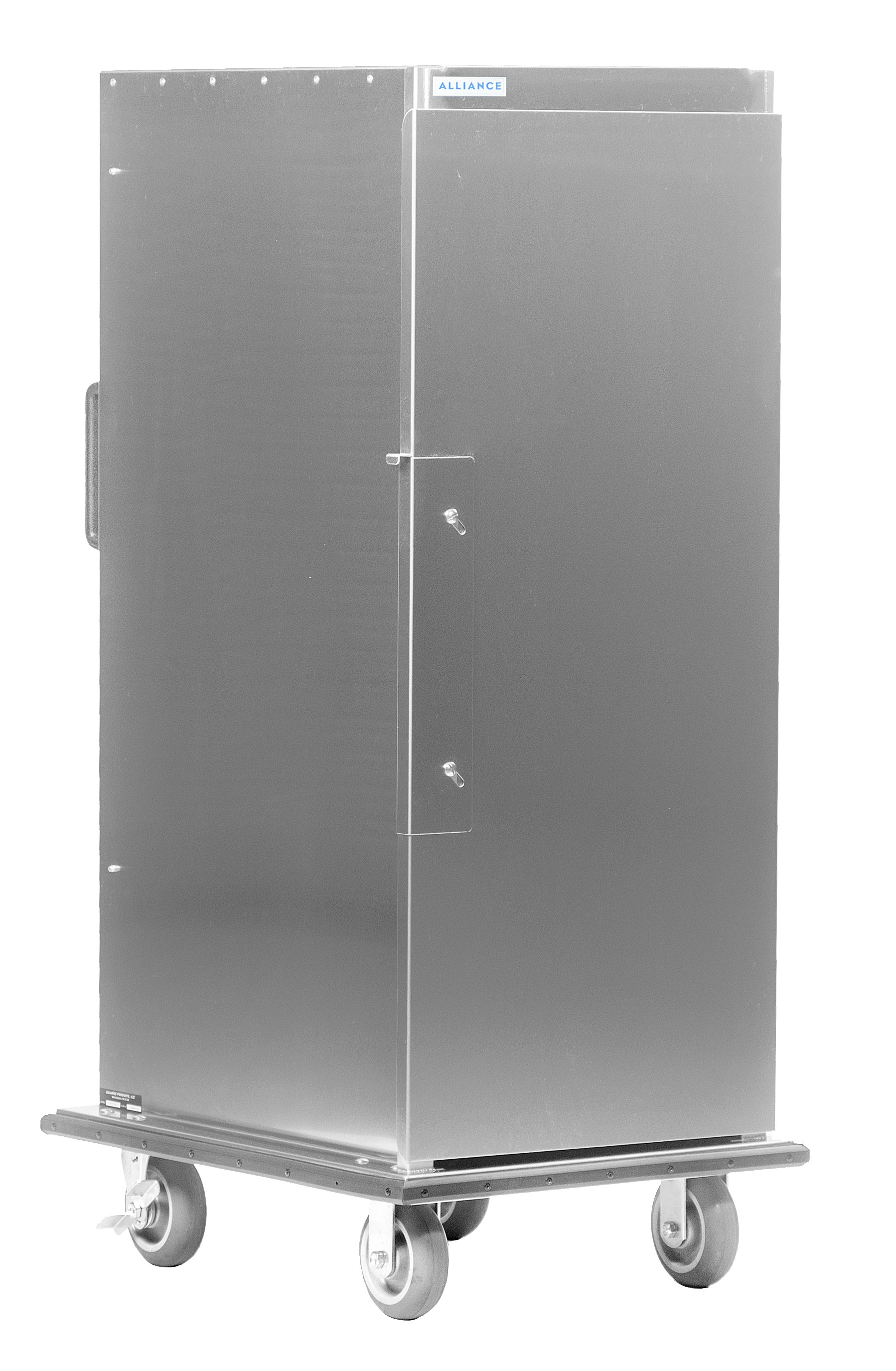

- Single door design with full length hinge and heavy duty stainless steel gravity latch.

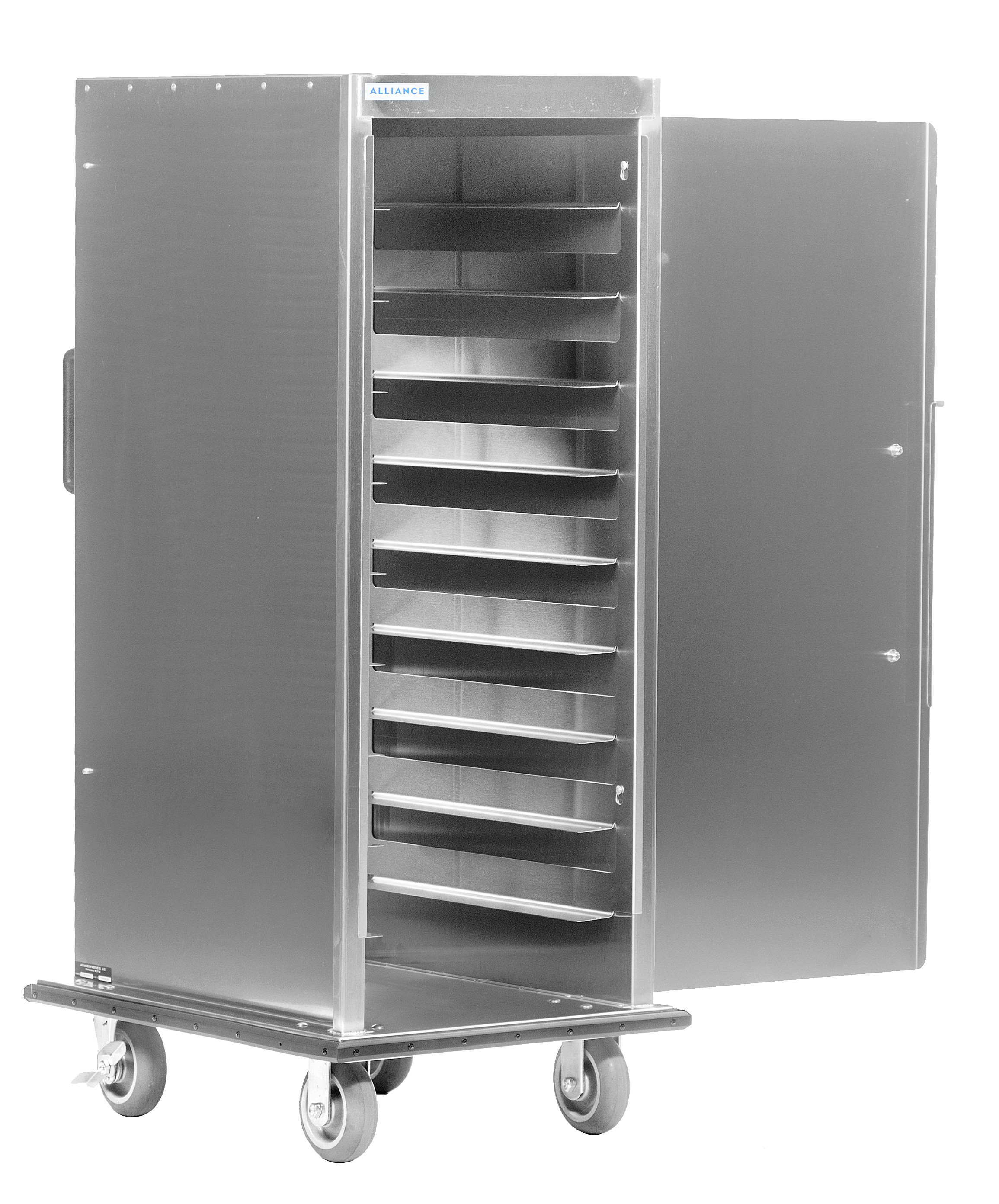

- Door opens a full 270 degrees and lays neatly against side of cart. Door is made of .090 aluminum or 16 gauge stainless steel.
- Contour seemless tray slides are easily removable for better cleaning. Available for 15x20 or 14x18 trays. Tray size must be specified with order.
- Base is made from .125 aluminum or 14 gauge stainless steel.

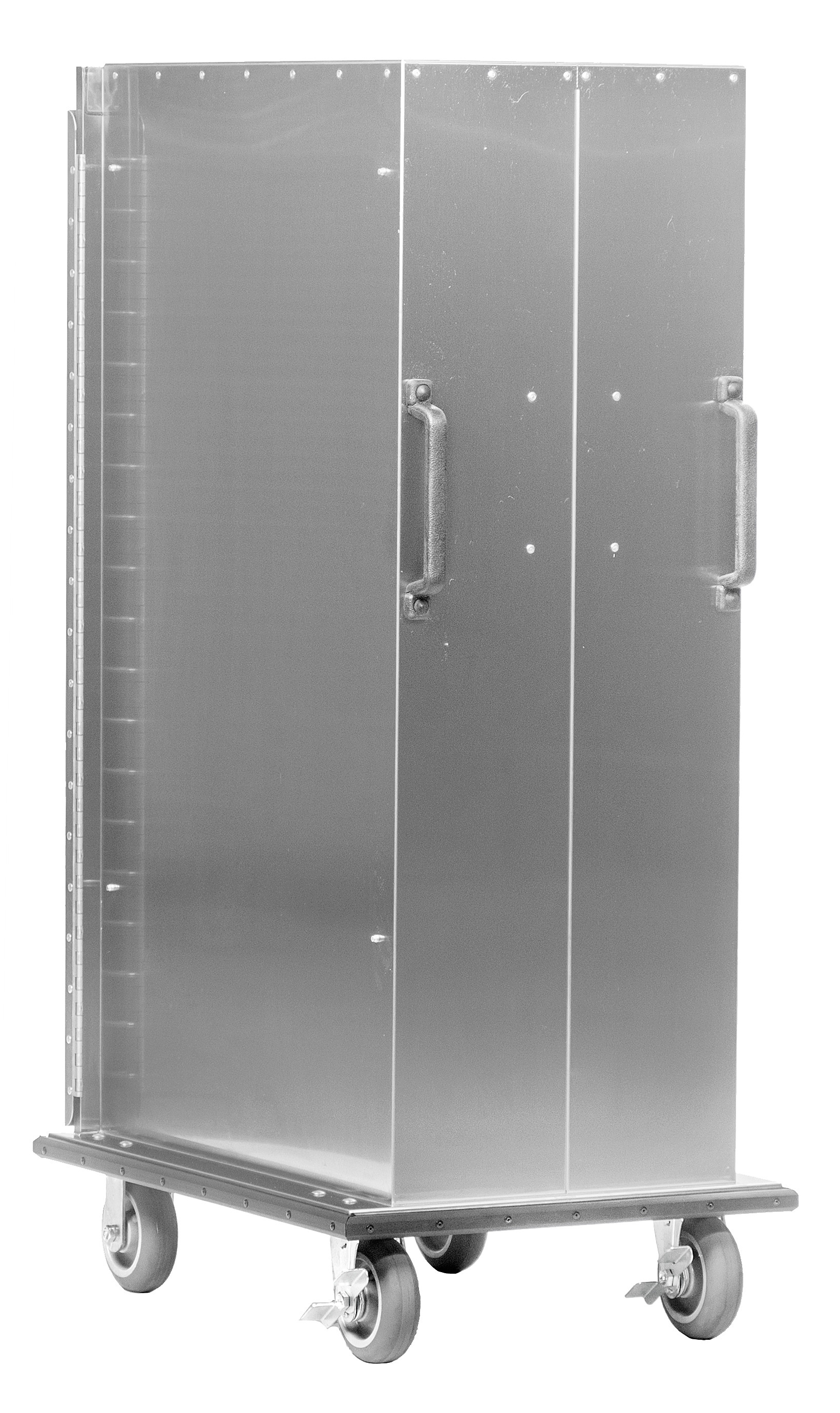

- Dual, vertical push/pull handles are mounted on rear of cart.
- Cart has 6" diameter cushion casters with zerk fittings
(two swivel with brakes and two rigid) - Full perimeter bumper is attached to cart base assembly
- 5" ledge spacing
- Ledges are 1 3/16" wide
- Non-insulated, non-heated cart with no floor drains
Options
- Please contact our facility at 615-895-5333 with inquiries for custom tray sizes, capacities, and ledge spacing.
Dimensions - Examples of Previous Models
| Model | Height | (14x18) W |
(14x18) D |
(15x20) W |
(15x20) D |
Casters | Construction | Capacity | Shipping Weight |
|
|---|---|---|---|---|---|---|---|---|---|---|
| Type | Dia. | Trays | lbs. | |||||||
| HM20 | 60 1/8" | 27 1/2" | 35 1/2" | 27 1/2" | 35 1/2" | 4 swivel, 2 w/brake |
6" | Aluminum | 20 | 140 |
| HM24 | 70 1/8" | 27 1/2" | 35 1/2" | 27 1/2" | 35 1/2" | 4 swivel, 2 w/brake |
6" | Aluminum | 24 | 155 |
| HM20SS | 60 1/8" |
25 1/2 " | 33 1/2 " | 27 1/2 " | 35 1/2" | 4 swivel, 2 w/brake |
6" | Stainless Steel | 20 | 220 |
| HM24SS | 70 1/8" |
25 1/2 " | 33 1/2 " | 27 1/2 " | 35 1/2" | 4 swivel, 2 w/brake |
6" | Stainless Steel | 24 | 250 |
