Specifications
- Stainless steel is nickel-bearing, 200 series minimum. This material is NSF recognized for corrosion resistance.
- 18 gauge stainless steel body and 20 gauge doors.
- .063 aluminum tray slides.
- Ledges are 2" wide.
- 18 gauge top; 16 gauge bottom on double door and 14 gauge bottom on single door.
- Double pan door with 1" rigid fiberglass insulation for sound deadening.
- Door mounted on stainless steel lift off hinges which allow 270 degree door swing.
- Stainless steel flush mount paddle latch.
- Corner bumpers.
- Vent louvers in cart sides and back.
- Drain hole pattern.
- 6" diameter cushion casters (two swivel with manual brakes, two rigid casters without brakes) on two door models.
- Vertical push handles on single door models.
- Horizontal push handles on double door models.
Options
- 8" diameter casters.
- Please contact our facility at 615-895-5333 with inquiries for custom tray sizes, capacities, and ledge spacing.
Dimensions - Examples of Previous Models
| Model | Tray Capacity | Ledge Spacing | # of Interior Compart-ments |
Overall Size | Casters | Shipping Weight |
Case Cube | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| W | D | H | Type | Dia. | lbs. | Cu. ft. | |||||
| D18TC1418E D18TC1520E |
18 | 14"x18" 15"x20" |
5" | 1 | 28 1/8" | 36 5/8" | 54 5/8" | 2 swivel, 2 fixed |
6" | 255 | 37.6 |
| D20TC1418E D20TC1520E |
20 | 14"x18" 15"x20" |
5" |
1 | 28 1/8" | 36 5/8" | 59 5/8" | 2 swivel, 2 fixed |
6" | 275 | 40.8 |
| D24TC1418E D24TC1520E |
24 | 14"x18" 15"x20" |
5" |
2 | 52 1/4" | 35 1/8" | 41" | 2 swivel, 2 fixed |
6" | 350 | 50.9 |
| D28TC1418E D28TC1520E |
28 | 14"x18" 15"x20" |
5" |
2 | 52 1/4" | 35 1/8" | 46" | 2 swivel, 2 fixed |
6" | 375 | 57.8 |
| D32TC1418E D32TC1520E |
32 | 14"x18" 15"x20" |
5" | 2 | 52 1/4" | 35 1/8" | 51" | 2 swivel, 2 fixed |
6" | 400 | 63.6 |

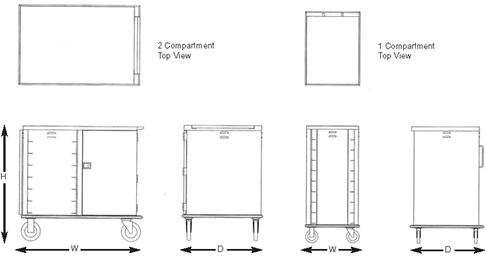

Drawings
