Specifications
- Stainless steel is nickel-bearing, 200 series minimum. This material is NSF recognized for corrosion resistance.
- Electrical: 208/220 VAC, 60 Hz, single phase.
Eight foot grounded 20 amp power cord supplied. - NEMA 6-20P plug.
- Option: Can be ordered in 240 VAC.
- Construction: The outer unit is constructed of 18 gauge stainless steel. Inner walls are constructed of .063 high strength alumninum. All sides and lids of unit are insulated with fiberglass insulation.
- Lids: Unique hat channel design requires no gaskets.
- Heating System: Thermostatically controlled, forced air heating system with 3200 watt element.
- Self-Leveling Dispenser: Individual, removable, self-adjusting and all stainless steel construction. Self-lubricating bearings ride over vertical guide rods. Available stacking height is 27 1/4".
- Casters: Unit is mounted on four 5" diameter swivel casters with non-marking cushion tread, two with swivel-lock and wheel brake.

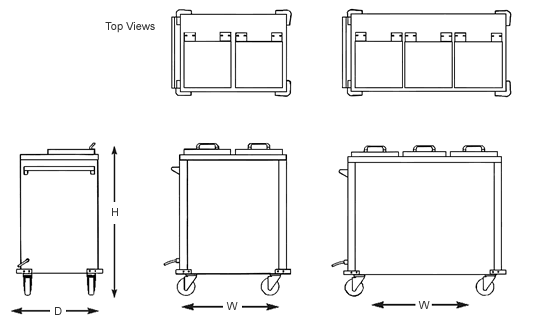

| Model | Overall Size | Casters | Shipping Weight | Case Cube | Electrical Specifications | Thermostat Range |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| W | D | H | Type | Dia. | lbs. | Cu. ft. | Watt | Amp | Volt | ||
| DALPH1002 | 33 3/8" | 23 3/4" | 42 3/4" | 4 swivel, 2 w/brake |
5" | 270 | 24.0 | 3200 | 16.3 15 |
208/220 60 Hz 240 |
250 to 290 degrees Farenheit |
| DALPH1503 | 43 7/16" | 23 3/4" | 42 3/4" | 4 swivel, 2 w/brake |
5" | 335 | 31.1 | 3200 | 16.3 15 |
208/220 60 Hz 240 |
250 to 290 degrees Farenheit |
